Soil Modification and Stabilisation using Lime and Cement

North Calvert

JJM2628 – Stabilisation for Haul Roadn
Project JJM2628 – Stabilisation for Haul Road
Location North Calvert
Client Buckingham
Key works delivered Soil Modification and Stabilisation using Lime and Cement
Project Duration May 2022 - 4 weeks
Stabilised Area 10 000 m2
Earthworks By Buckingham

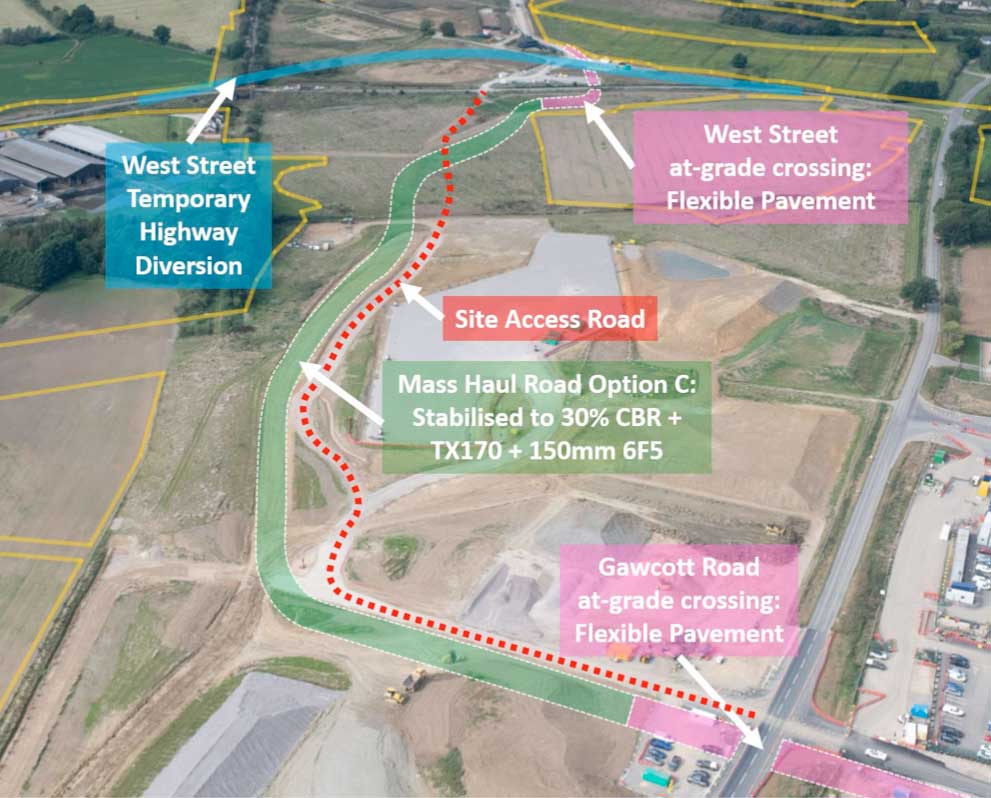

JJMac North Calvert Map
PROJECT OVERVIEW
PROJECT CHALLENGES
The project was very challenging due to the loading required from 300mm Layer. The Haul Road is to be used to cart excavated material with some 50No 45tn Dump trucks trafficking every day.
A combination of Lime and Cement was used to acheive the required loadings. A period of mellowing was required to allow the Lime to breakdown the Clays. The mellowing period and follow on cement works had to be co-ordinated to ensure all works were trimmed and compacted before the end of each shift.
Management of Logistics and deliveries of Binder are challenging on HS2 with prebooking and certifified delivery trucks etc only allowed on site.
ENGINEERING AND SOLUTIONS TO OVERCOME THE CHALLENGES
To overcome the project challenges set by the client, our team:

EARTHWORKS AND STABILISATION DURING CONSTRUCTION PHASE
JJMac Site HS2 Team

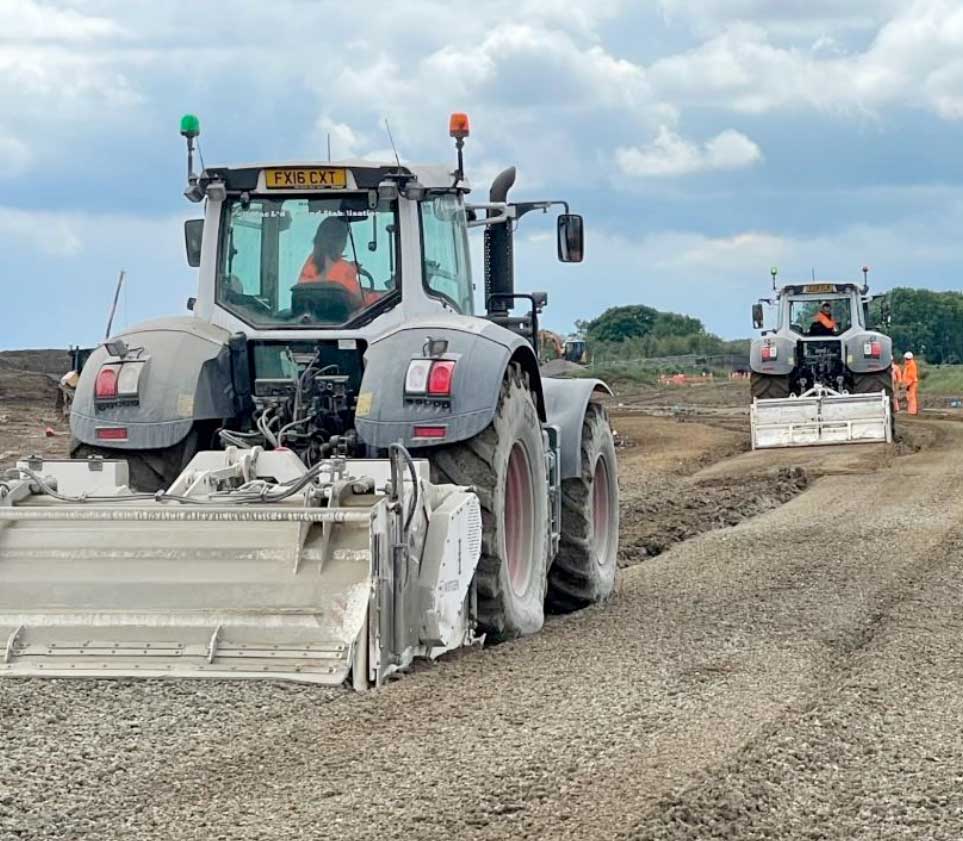

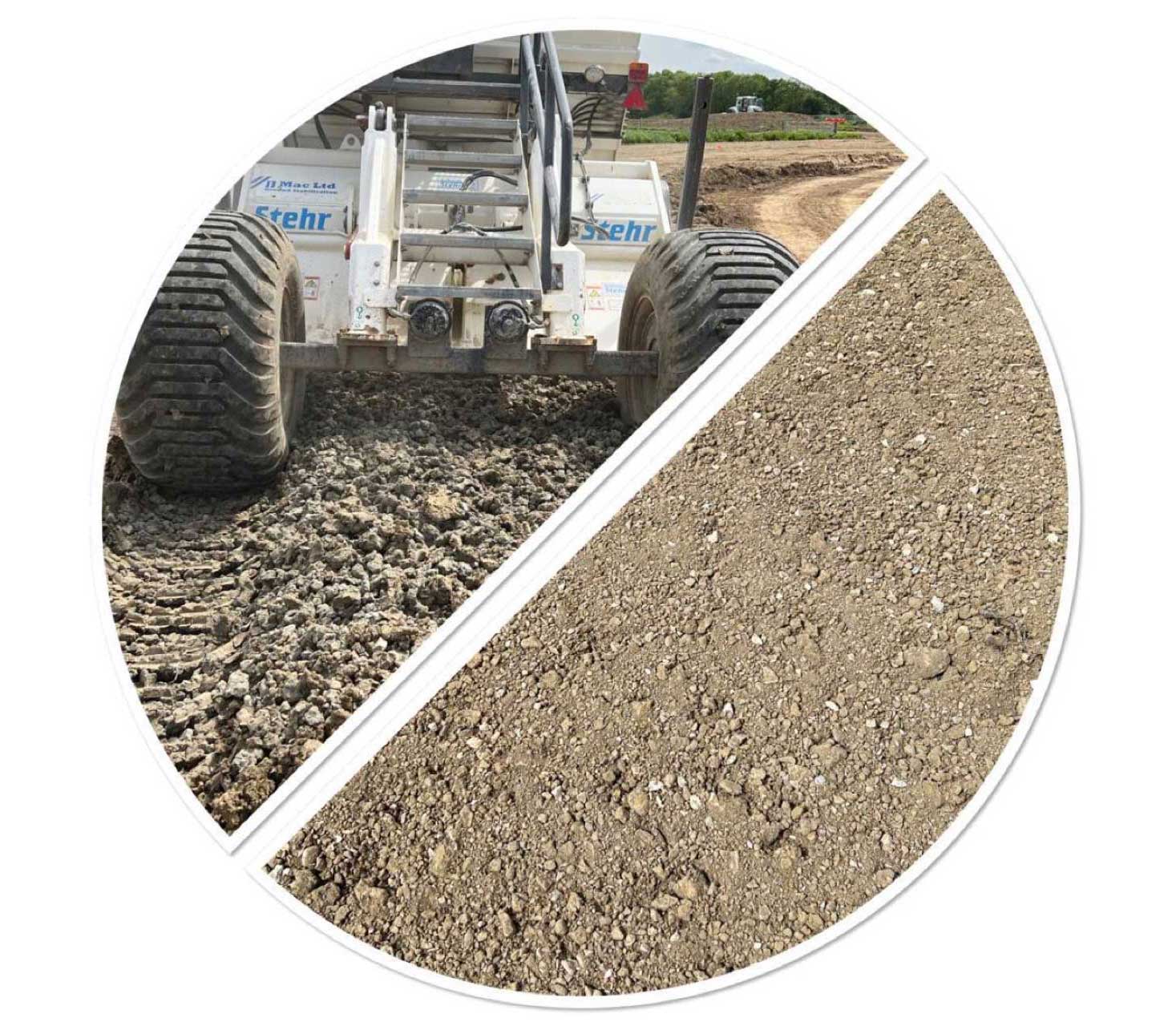

JJMac North Calvert 1 7A Soil being mixed after mellowing with Lime and 7A material ready for Cement Stabilisation JJMac North Calvert 2 JJMac North Calvert 3


All Earthworks and Drainage carried out by JJMac working as Principle Contractor.
COMPLETED WORKS
JJMac Stevenage – Embankment Stabilisation
ADVANTAGES
The works had numerous advantages to this site.
BENEFITS TO CLIENT
Cost Saving
60%
Programme Reduction
75%
Vehicle Movements Reduction
80%
Imported Aggregate Reduction
70%
Material Sent To Landfill Reduced By
100%
Stone Layer Depth Reduction
50%
