JJMac Marham Park –Adoptable Roads Stabilisation

Marham Park

Embankment Stabilisation

JJM2642 – Adoptable Roads Stabilisation
Project JJM2642 – Adoptable Roads Stabilisation
Location Marham Park Bury St Edmunds
Client Orbital Homes
Key works delivered Capping and Sub Base Replacement - Stabilisation
Project Duration March 2022
Stabilised Area 5000 m2
Earthworks By MC

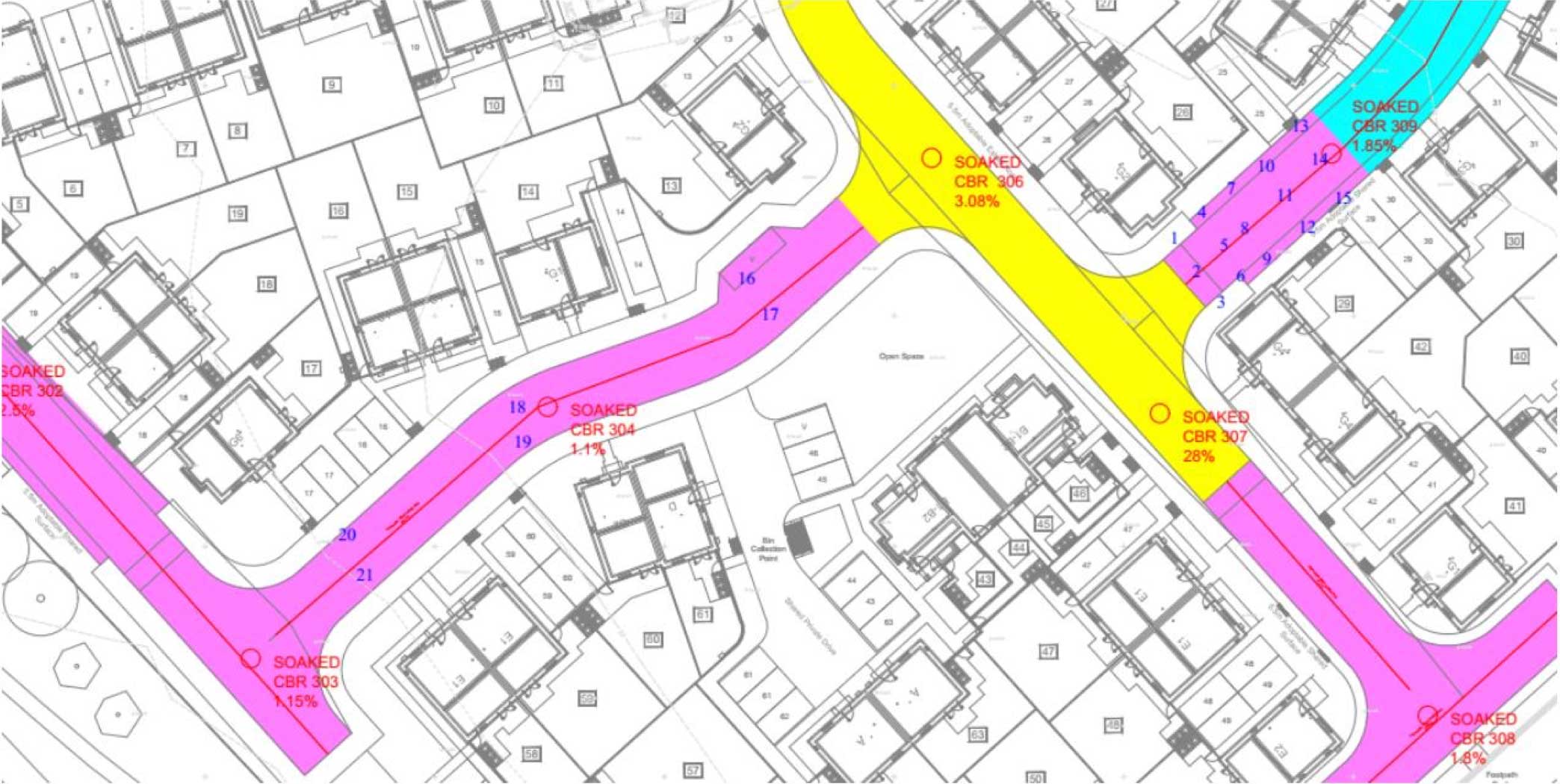

Marham Park Map
PROJECT OVERVIEW

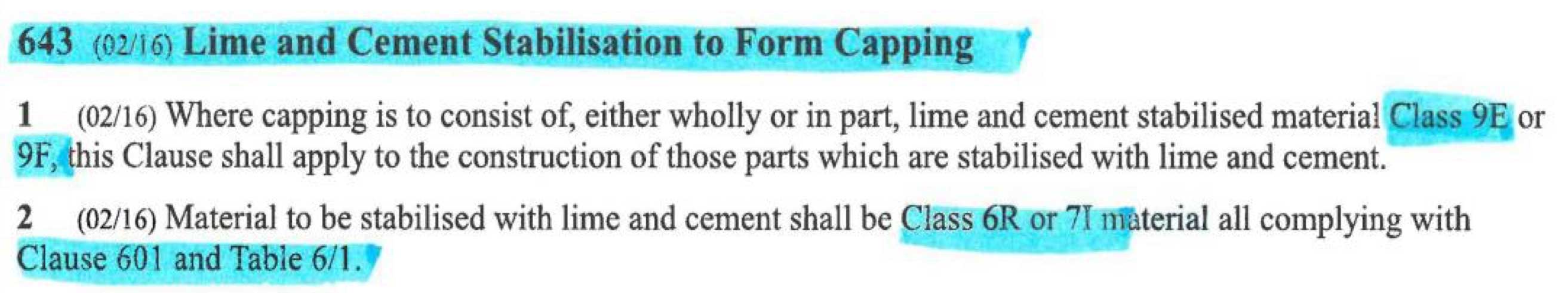

Marham Park Lime and Cement Stabilisation to Form Capping Quotation
PROJECT CHALLENGES

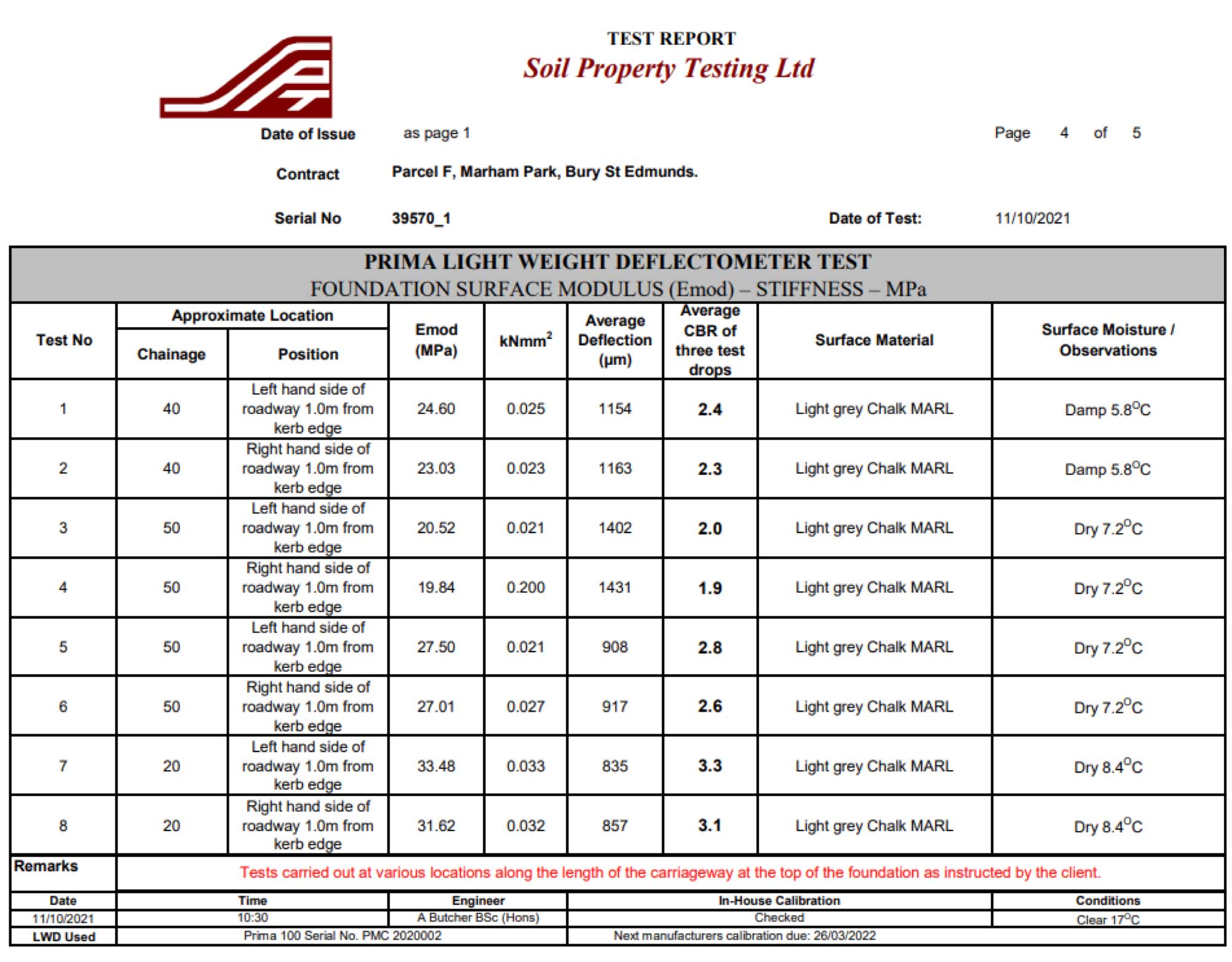

The project was very challenging as the drainage had been installed prior to Stabilisation. Mellowing of the lime mix was min 24hrs, so time management and coordination was a key requirement from all parties on site to ensure an efficient operation and highest quality was always maintained. Poor CBR % at formation level would require careful working with heavy machinery not to damage the formation. Test Report
ENGINEERING AND SOLUTIONS TO OVERCOME THE CHALLENGES
To overcome the project challenges set by the client, our team:
STABILISATION DURING CONSTRUCTION PHASE

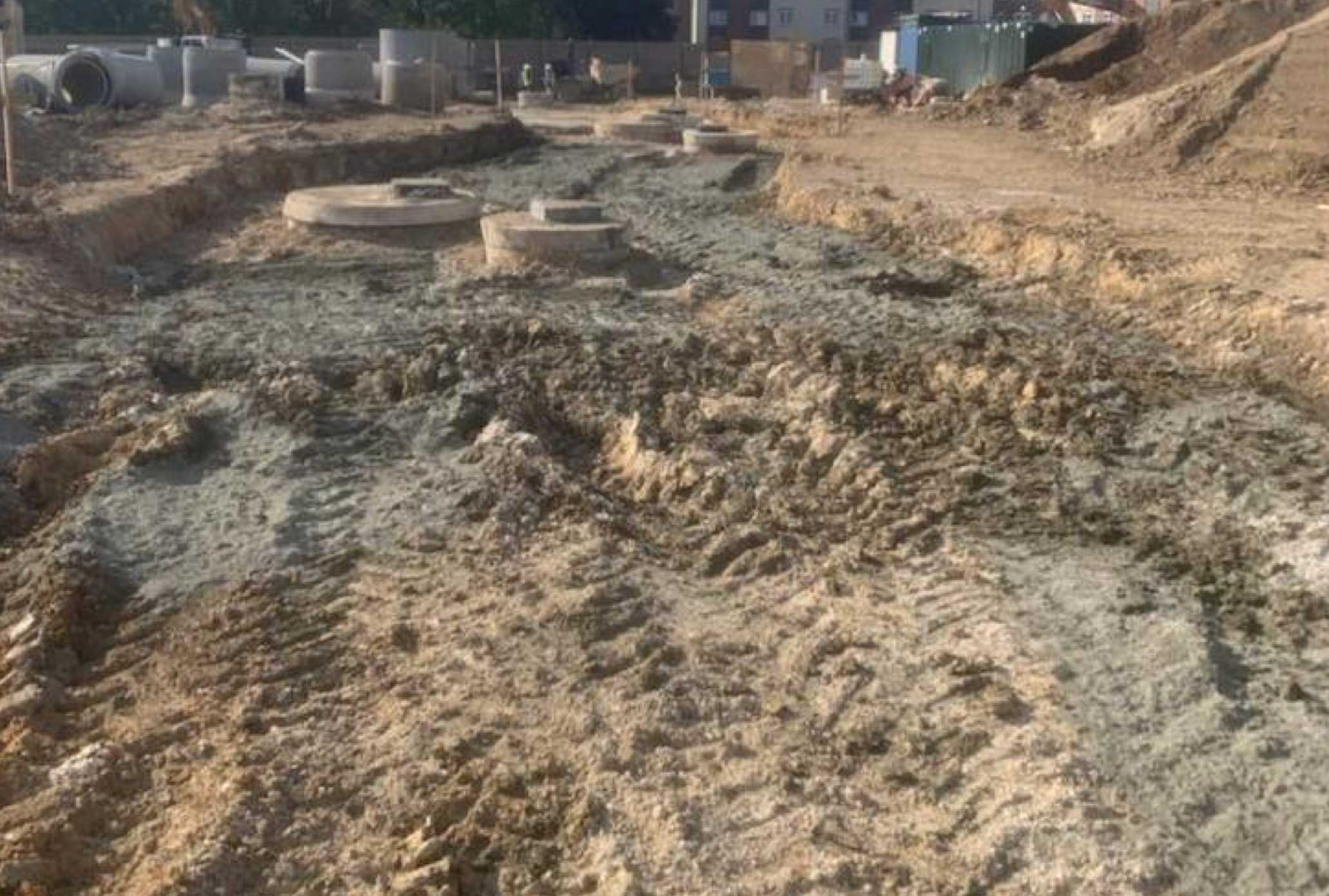

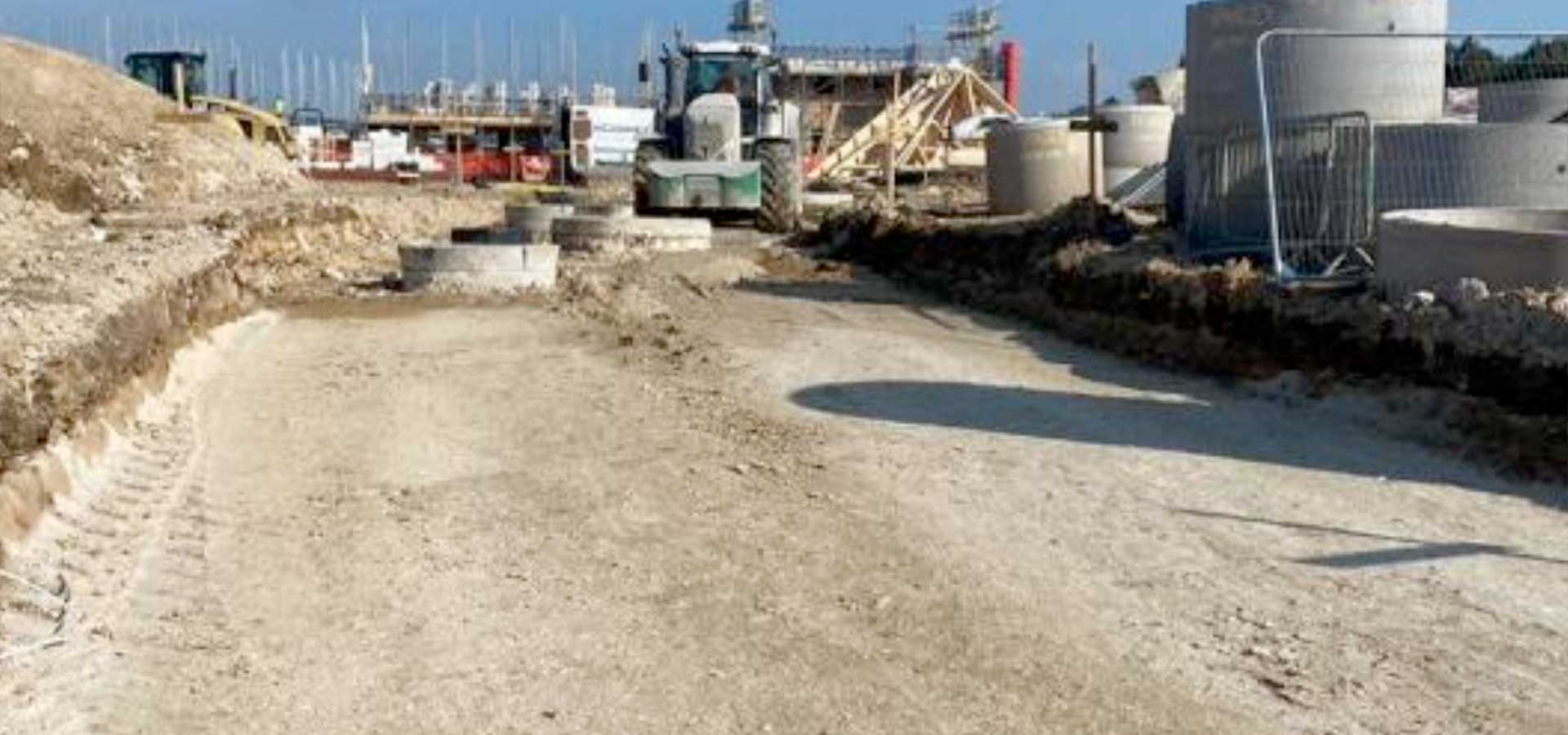

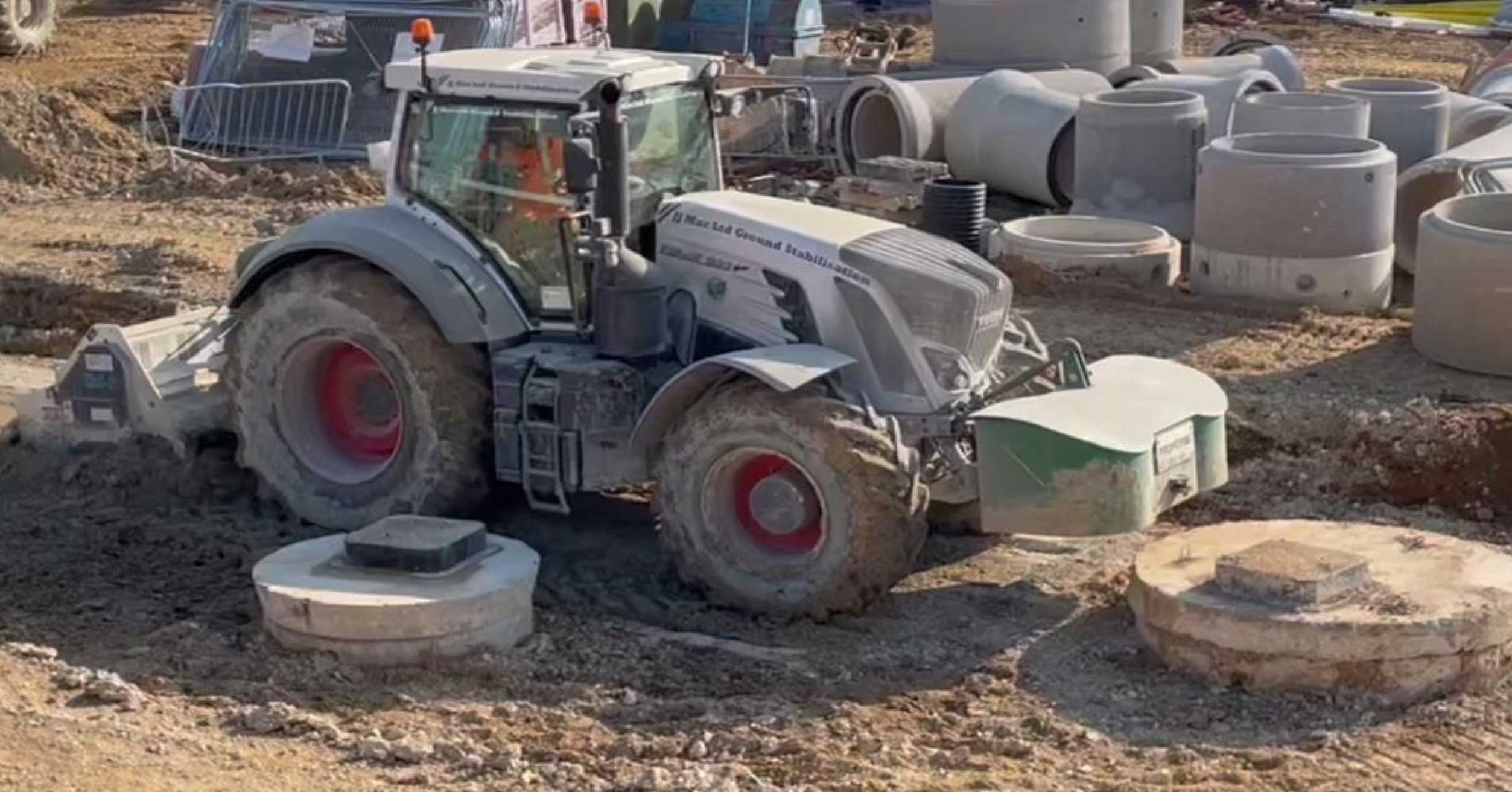

Agile equipment utilised for the tight working conditions in and around the drainage Fendt tractor and Stehr Tractor mounted Stabilisation Mixer Marham Park 1 Marham Park 2
COMPLETED WORKS

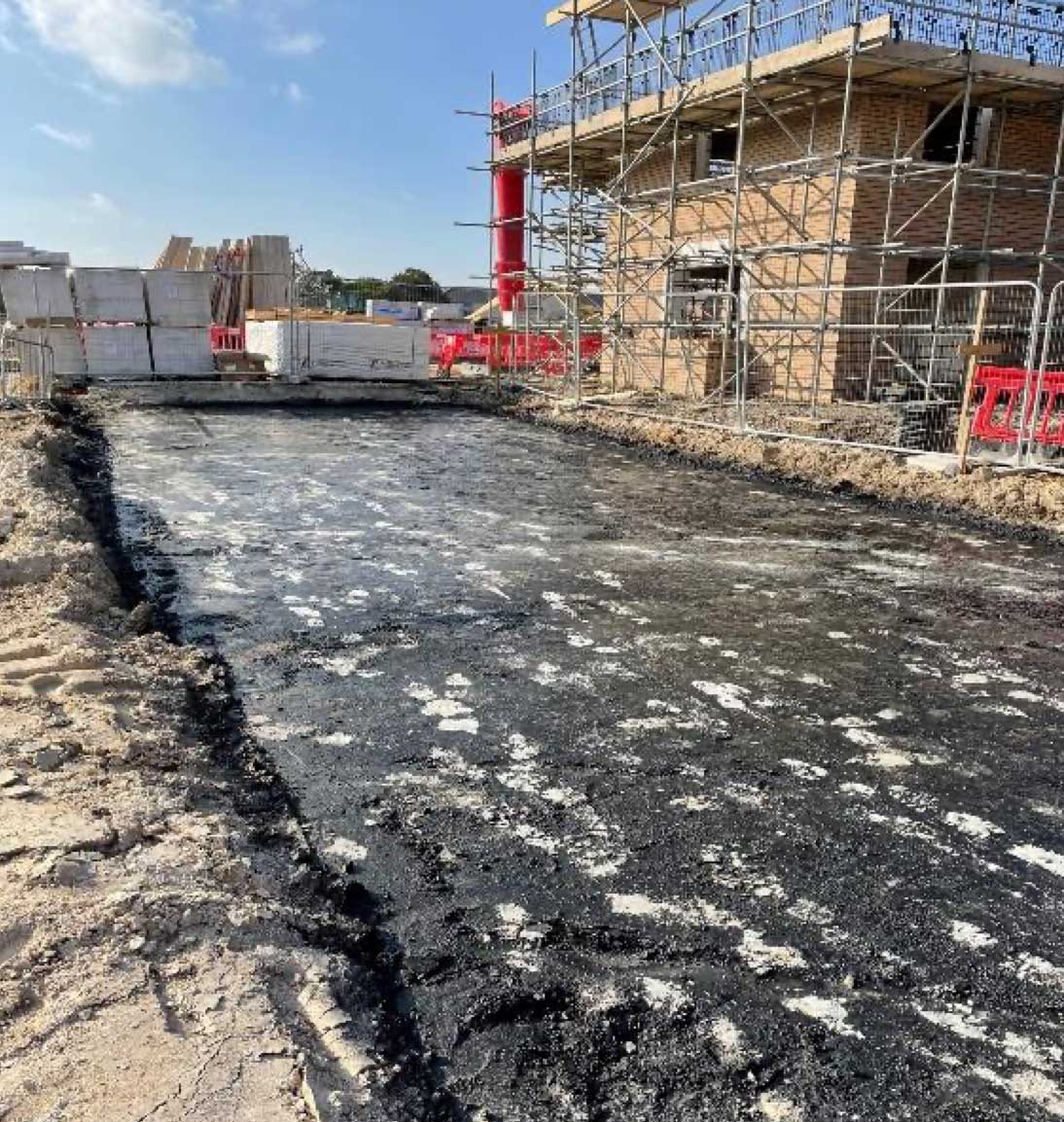

Stabilised Capping Replacement sealed with Bitumen Tack Coat

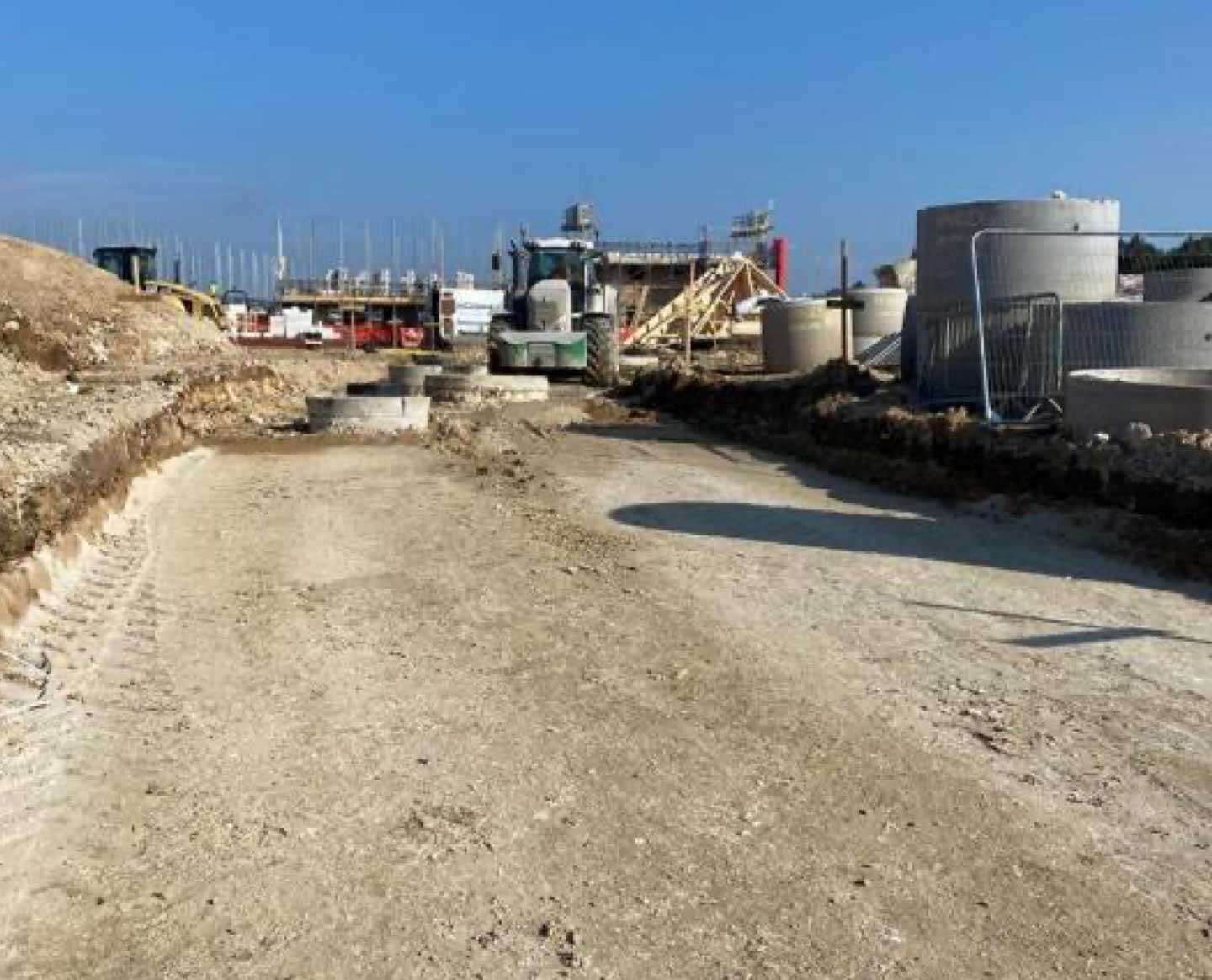

Marham Park 3
Marham Park 4

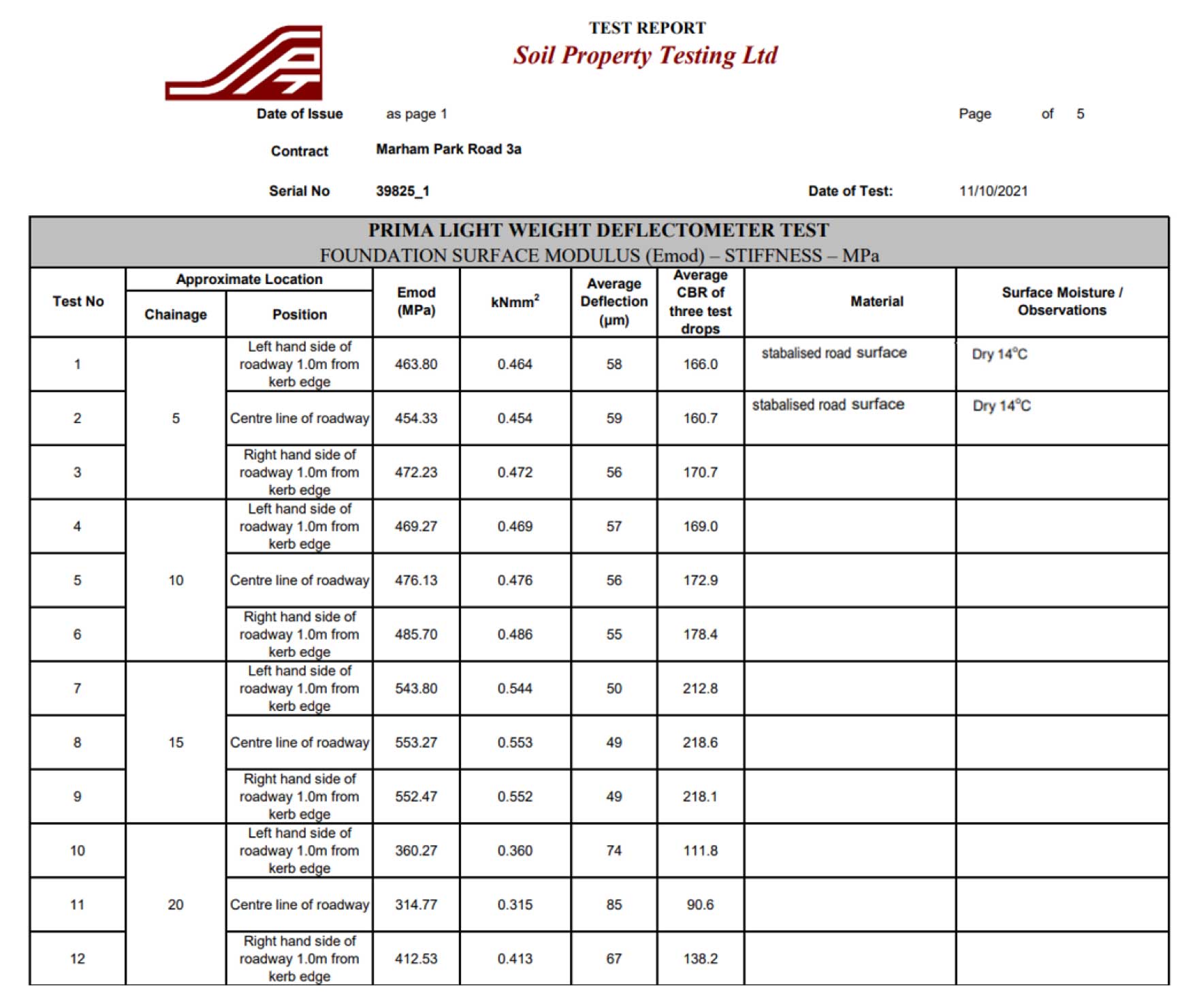

CBR Report on Finished Stabilised Surface Marham Park Test Report
ADVANTAGES
The works had numerous advantages to this site.
BENEFITS TO CLIENT
JMac are experts in Soil and Ground Stabilisation using lime, cement and other binder materials. Ground Stabilisation geotechnically enhances waterlogged or weaker soils and allows for greater weight bearing for construction materials. JJMac can provide an exceptionally cost-effective construction method for improving the weight bearing properties of any soil found on site and at a competitive rate.


Cost Saving
60%
Programme Reduction
70%
Vehicle Movements Reduction
95%
Imported Aggregate Reduction
90%
Material Sent To Landfill Reduced By
100%
Stone Layer Depth Reduction
75%
