Project	JJM3015 – Temporary Works Compound Stabilisation
Location	Long Stratton – Long Stratton Bypass
Client	Octavious
Key works delivered	Earthworks including Topsoil Strip, levelling and Capping Stabilisation
Project Duration	4 Weeks

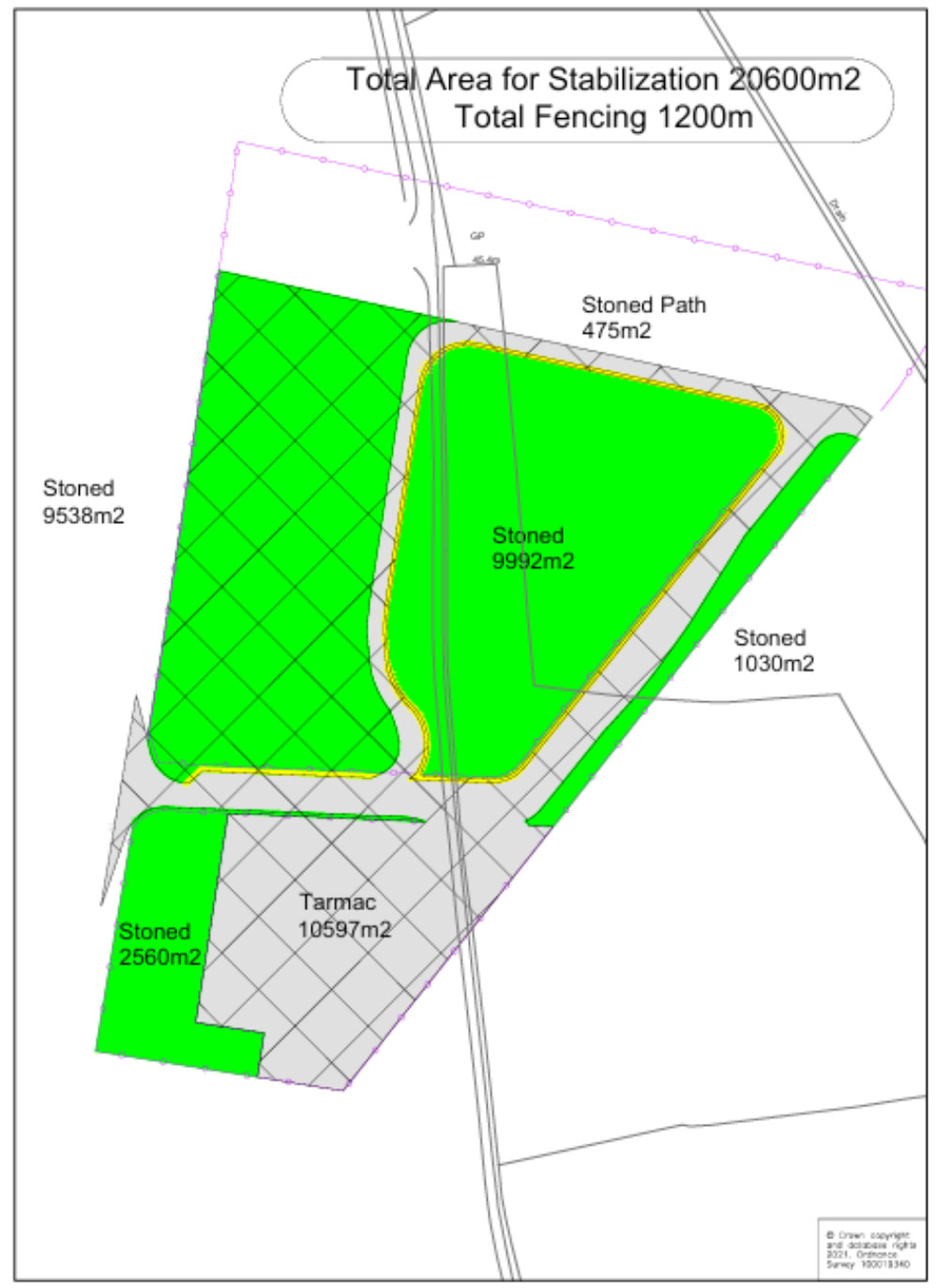

Stabilised Area	20 000 m²
Earthworks	By JJMac

Agricultural Land.
The site required approx. 20,000m of Topsoil Strip, Earthworks and In-situ Stabilisation to achieve min 30% CBR
Client requirements 95% Compaction and 30% CBR Non-Frost Susceptibility.
Independent Design and testing carried out by i2 Laboratories.
Stabilised Area to be decommissioned and returned to landowners on completion of main works.

The project programme was challenging and with the weather we encountered in march and April being so wet it was difficult to travel on the site. Careful Earthworks to achieve the MCVs.
Binder spreading and mixing had to be very precise to ensure the design CBR would be achieved.
The project has a very stringent test and compliance schedule. All target MCV and CBR test were taken daily
Proximity to other works on site meant very well managed works and deliveries were always required.

To overcome the project challenges set by the client, our team:

worked with the client and advised on the findings of the site won material testing and classification.
Samples were taken for Lab Testing with Agronomist to develop a Decommissioning Strategy to return the subsoil to its original condition prior to the binder addition.
Once the site was Topsoil Stripped and levelled, the challenge was to spread and stabilise the host material by mixing with Cement and complying with the stringent testing schedule for the stabilised material.
set to work with the Octavious team to develop a system to allow both earthworks and stabilisation to progress efficiently.

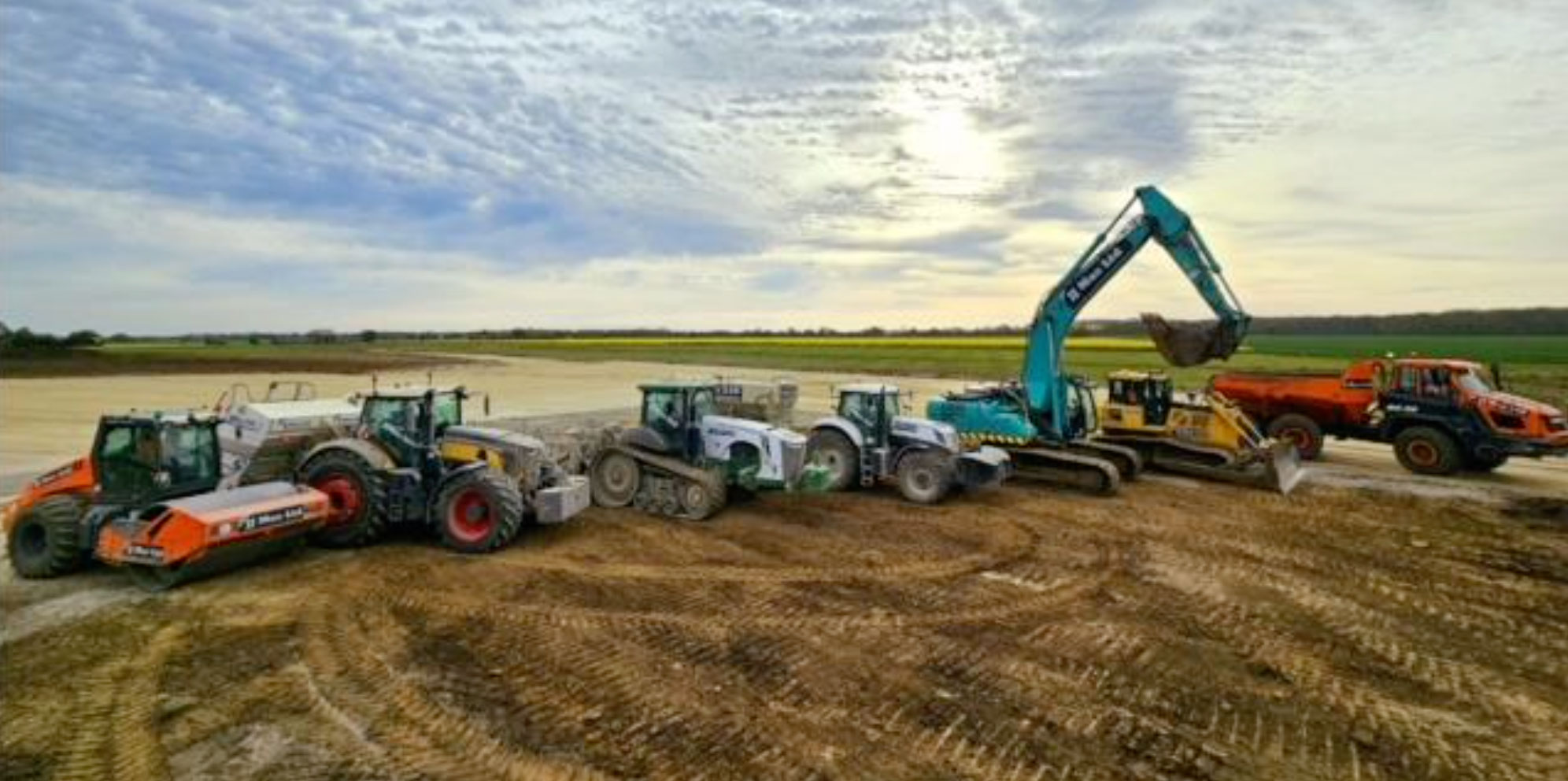

JJMac operate a fleet of very agile equipment.
Tractor mounted Wirtgen 250WS Mixers were selected for this project due to the challenging site conditions earlier on in the project.

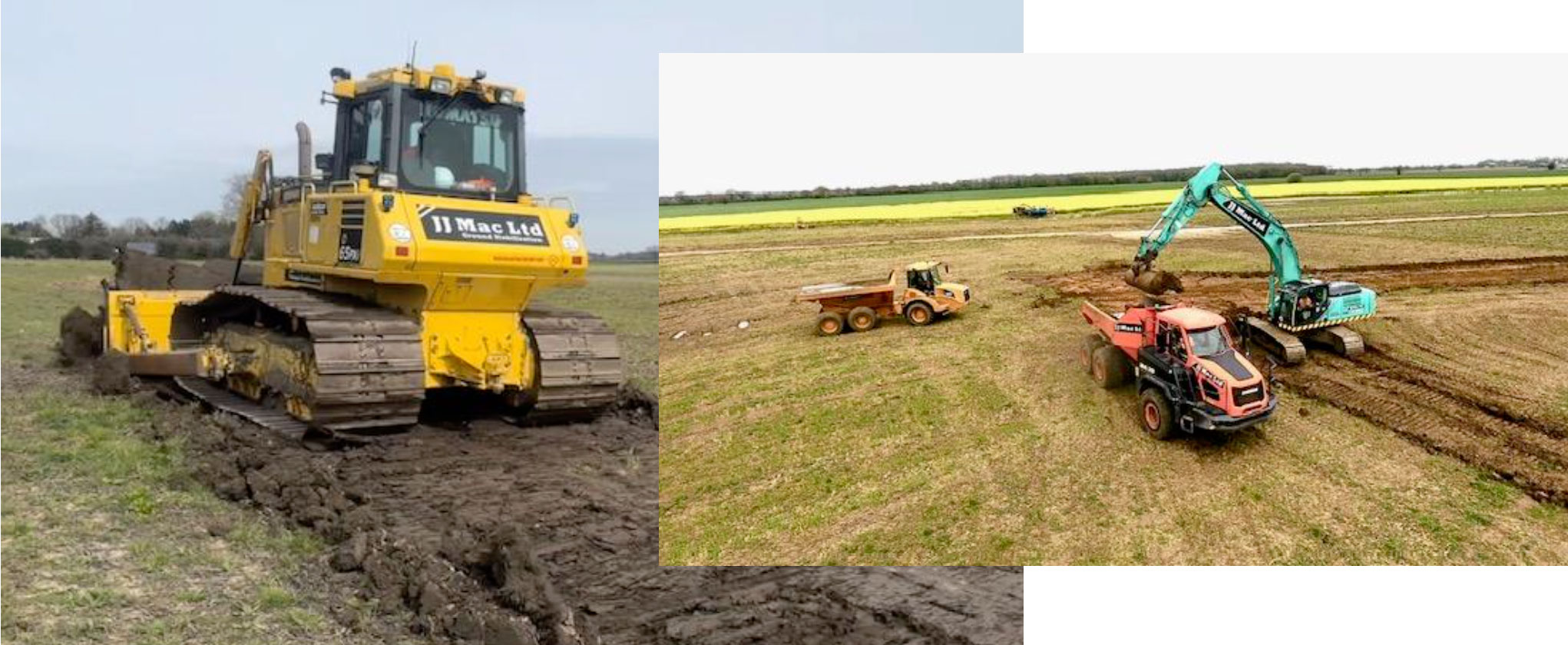

Our Dustless Stehr was also utilised for all works near the existing offices during any windy conditions which enabled us to progress works in all conditions. Long Stratton Bypass 1

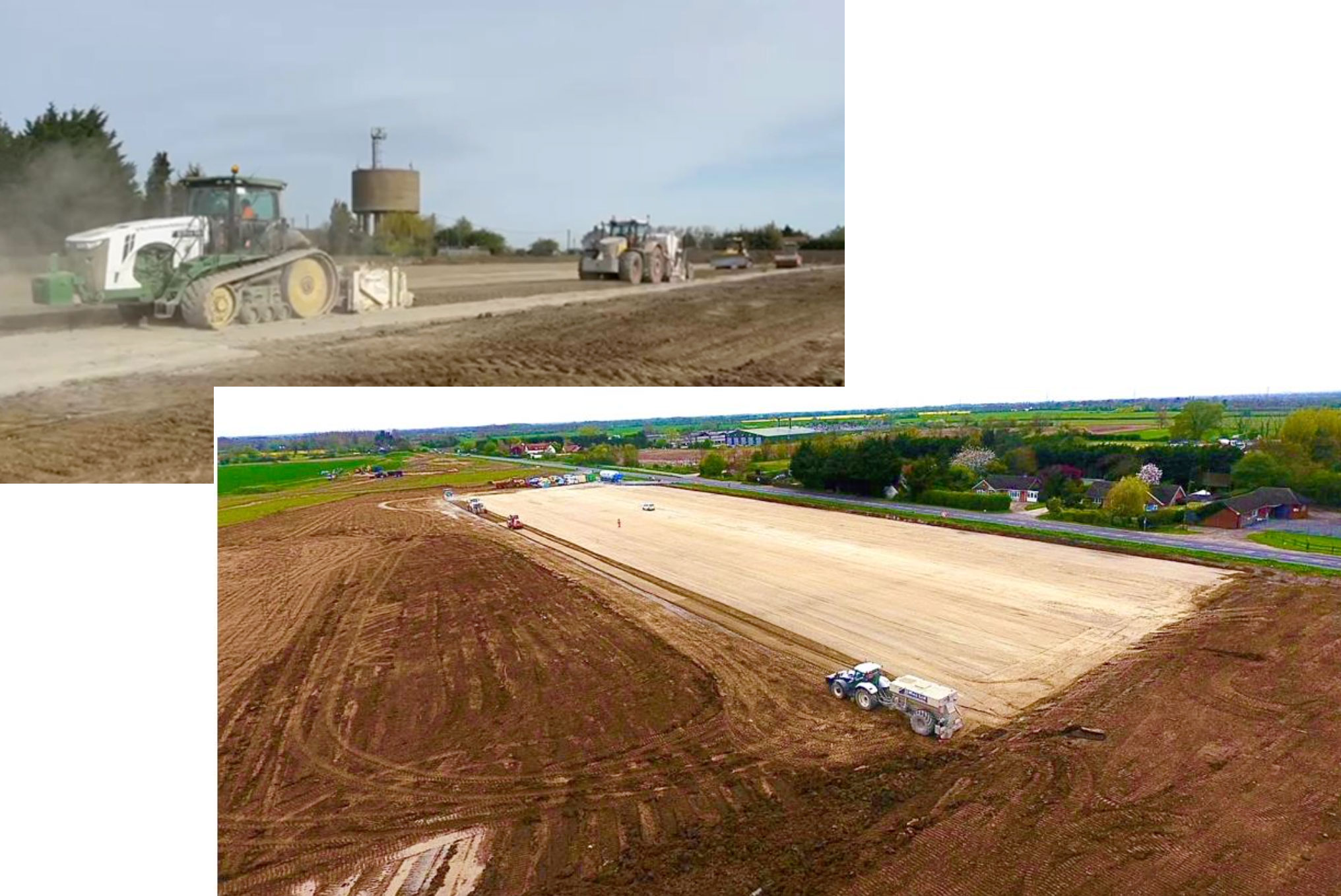

Capping Layer stabilisation to min 30% using 3.5% by Vol CEMI Long Stratton Bypass 2

The works had numerous advantages to this site.

Site won material used to make up levels and reducing the need for any off site disposal.
Capping layers and subbase replacement offers huge Reduction of Primary Aggregates.
Reduction of Lorries from the surrounding roads.

JMac are experts in Soil and Ground Stabilisation using lime, cement and other binder materials. Ground Stabilisation geotechnically enhances waterlogged or weaker soils and allows for greater weight bearing for construction materials. JJMac can provide an exceptionally cost-effective construction method for improving the weight bearing properties of any soil found on site and at a competitive rate.

Cost Saving

50%

Programme Reduction

40%

Vehicle Movements Reduction

75%

Imported Aggregate Reduction

80%

Material Sent To Landfill Reduced By

100%

Stone Layer Depth Reduction

70%

Long Stratton Bypass

Compound and Haul Road Stabilisation
